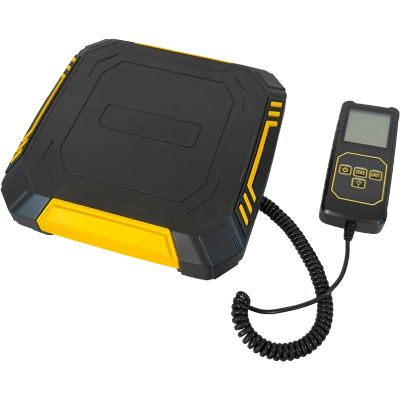

This Digital Scale allows technicians to monitor weight during charging and recovery work on air conditioning and refrigeration equipment. It combines a maximum capacity of 100 kg with a resolution of 5 g and features a highly accurate, stable sensor.
The device includes an LCD for checking measurements and a carrying case for transport. Its straightforward operation makes it easy to use during routine professional servicing.
Code
4646710000
Measures
271x271x74
Maximum weight
100 Kg
Resolution
5 gr
Unit Pack.
1
Weighing capacity and technical specifications
When choosing a scale, it is worth checking its maximum load, resolution and accuracy. Each specification describes a different aspect of measurement:
- Maximum capacity: 100 kg.
- Resolution: 5 g.
- Stated accuracy: ± 0.05% of reading + 10 g.
- Operating temperature: −10 °C to +40 °C.
- Device weight: 3.625 kg.
A resolution of 5 g means that the weight is displayed in five-gram increments. However, this is not the same as the scale’s margin of error. To assess that, refer to the accuracy specification, which combines a percentage of the reading with a fixed term in grams.
Checking the weight during servicing
The LCD provides high contrast and a wide viewing angle. These features make the displayed value easier to read during weighing operations.
The scale’s simple operation also makes it easy to use during refrigerant charging and recovery. Its role is to measure weight throughout the process; all procedures must follow the instructions for the device and the system being serviced.

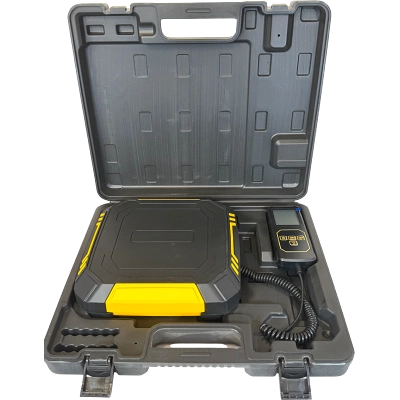

Easy to transport between sites
When working at different locations, a carrying case makes the instrument easier to transport and store. This model includes one as part of the package.
The scale is also made from high-quality, impact-resistant materials. Once the job is complete, it can be stored in its case ready for the next visit.
Checks before using the digital scale
Before starting, check that the load does not exceed 100 kg and that the ambient temperature is within the permitted range. Remember to include the container’s weight when checking the total load you intend to place on the scale.
Finally, consult the manufacturer’s instructions to prepare the device and carry out weighing correctly.
