HORIZONTAL DRY PRESSURE GAUGE PLASTIC CASE

HORIZONTAL DRY PRESSURE GAUGE PLASTIC CASE

Mechanical pressure instrumentation/
french flag
spanish flag

Ø 40, 50 and 63 plastic case. ABS window, pressure system and brass connection. Accuracy 2.5% in diameter 40 and 1.6% in the remaining diameters.

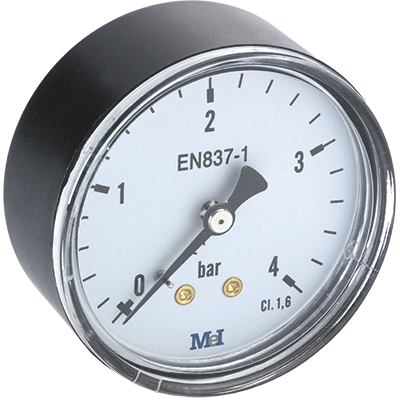

horizontal dry pressure gauge plastic case

Code

6011280800
6011281000
6011281100
6011281200
6011281300
6011281400
6011281500
6011281600
6011281700
6011282000
6012240801
6012240800
6012240900
6012241100
6012241200
6012241300
6012241400
6012241500
6012241600
6012241700
6012241800
6012241900
6012280800
6012281300
6012281400
6012281500
6012281600
6013240800
6013241100
6013241200
6013241300
6013241400
6013241500
6013241600
6013241700
6013241800
6014241600

Ø

40
40
40
40
40
40
40
40
40
40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
63
63
63
63
63
63
63
63
63
80

Connection

horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal

Ø x Nut

1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/8
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/8
1/8
1/8
1/8
1/8
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4
1/4

Range/PN

-76/0 cmHg
0 … 1 bar
0 … 1,6 bar
0 … 2,5 bar
0 … 4 bar
0 … 6 bar
0 … 10 bar
0 … 16 bar
0 … 25 bar
0 … 100 bar
-1 … 0 bar
-76/0 cmHg
0 … 0,6 bar
0 … 1,6 bar
0 … 2,5 bar
0 … 4 bar
0 … 6 bar
0 … 10 bar
0 … 16 bar
0 … 25 bar
0 … 40 bar
0 … 60 bar
-76/0 cmHg
0 … 4 bar
0 … 6 bar
0 … 10 bar
0 … 16 bar
-76/0 cmHg
0 … 1,6 bar
0 … 2,5 bar
0 … 4 bar
0 … 6 bar
0 … 10 bar
0 … 16 bar
0 … 25 bar
0 … 40 bar
0 … 16 bar

U. / G. Pack.

1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 200
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 100
1 / 50

Technical sheet

Request information
